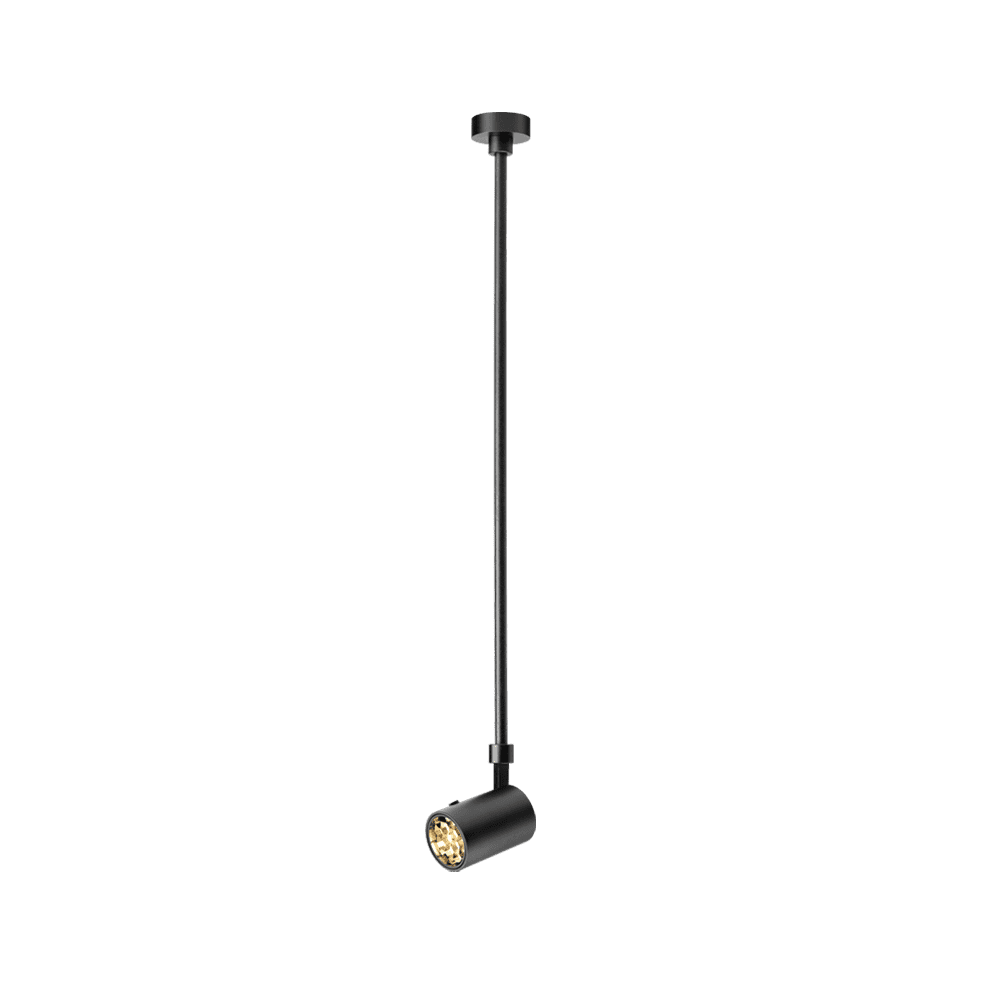

Infinity V28 Static

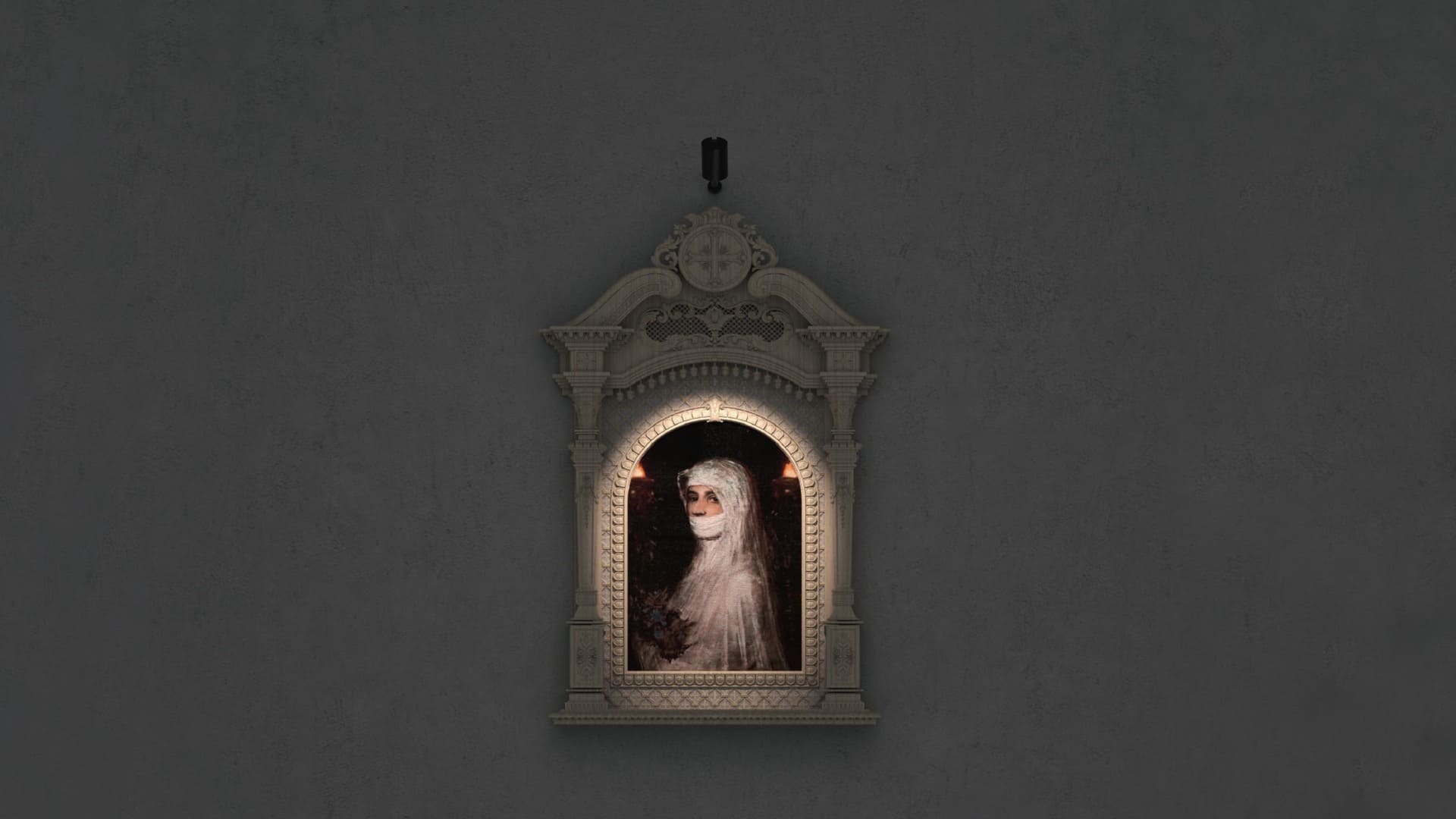

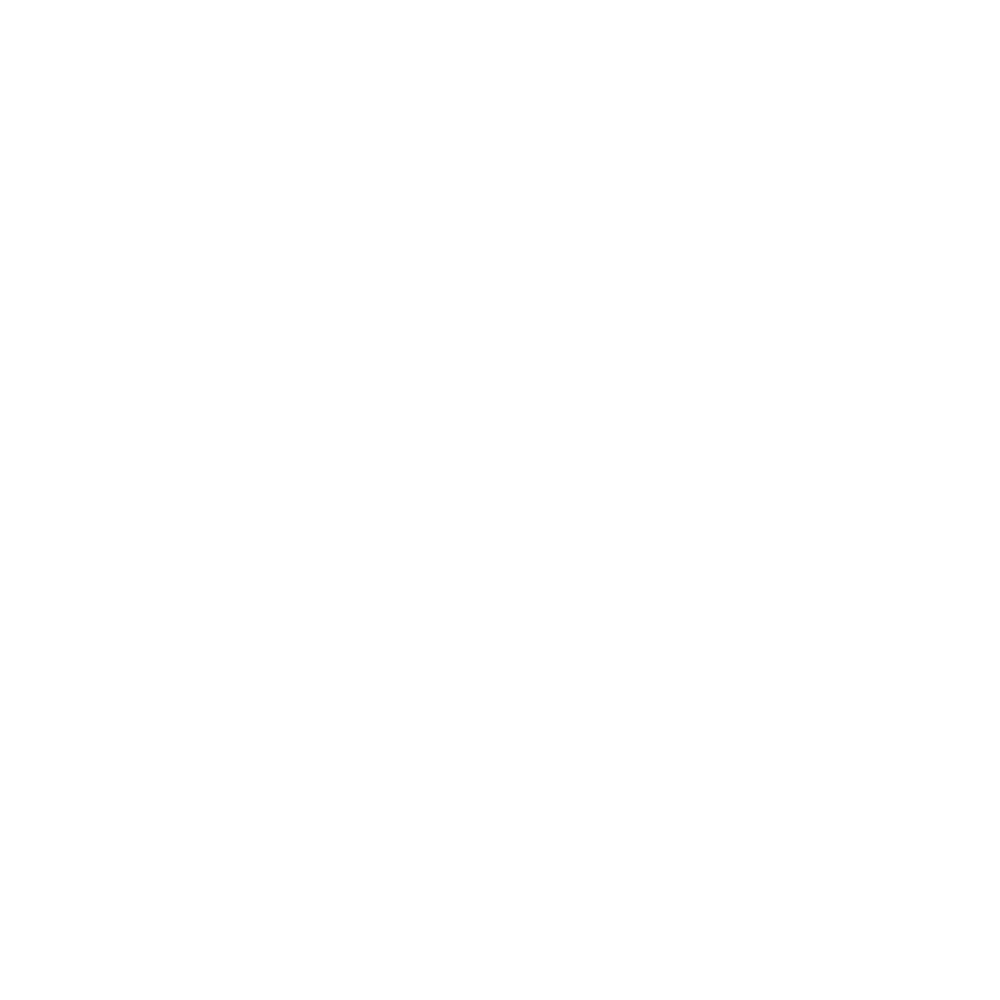

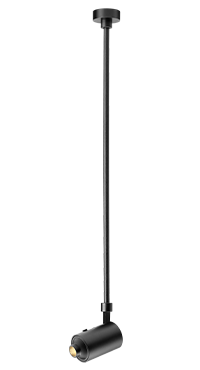

Infinity V28 Static is a surface-mounted fixture with a long arm, enabling flexible and easy installation. Definitely, the height of arm also can be customized. Thanks to its particular flexibility and adjustability, this 3-8° , 6-45° zoom spot is the ideal fixture for museums and high-end cabinets to show different exhibits.

All

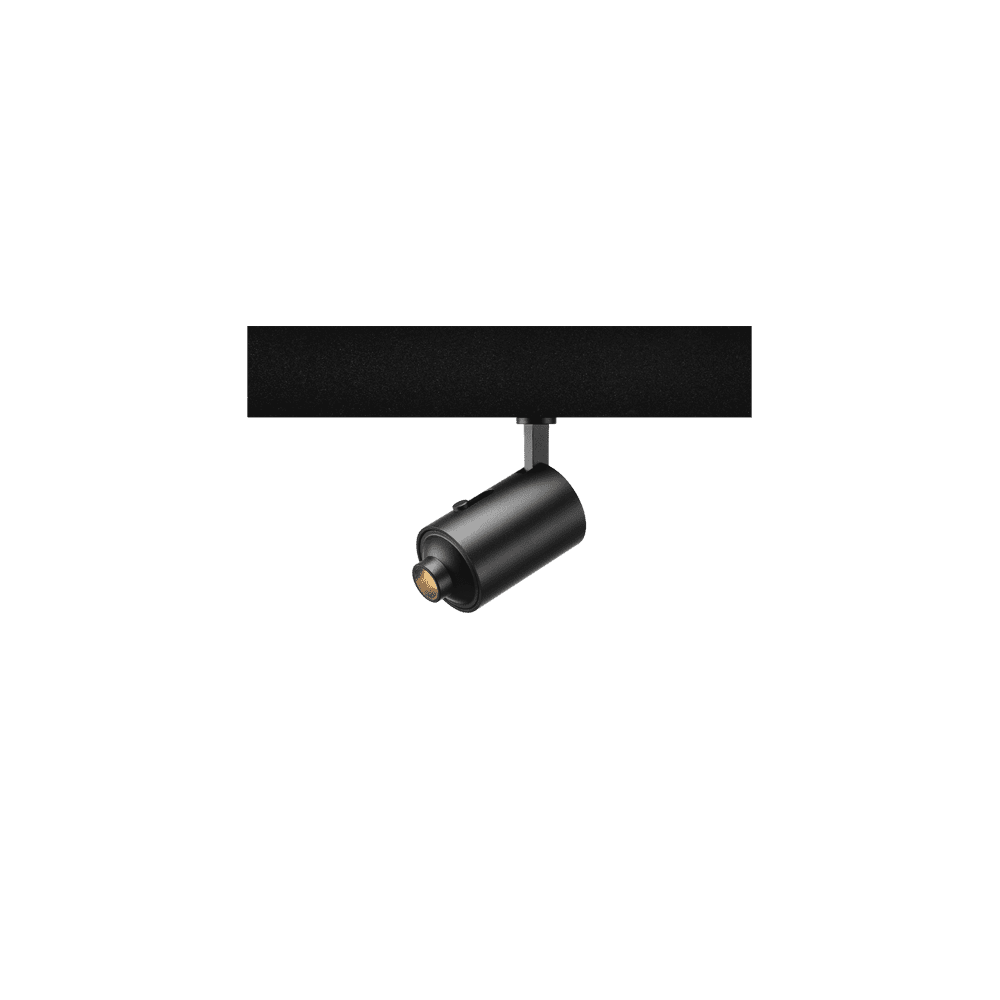

Magnetic

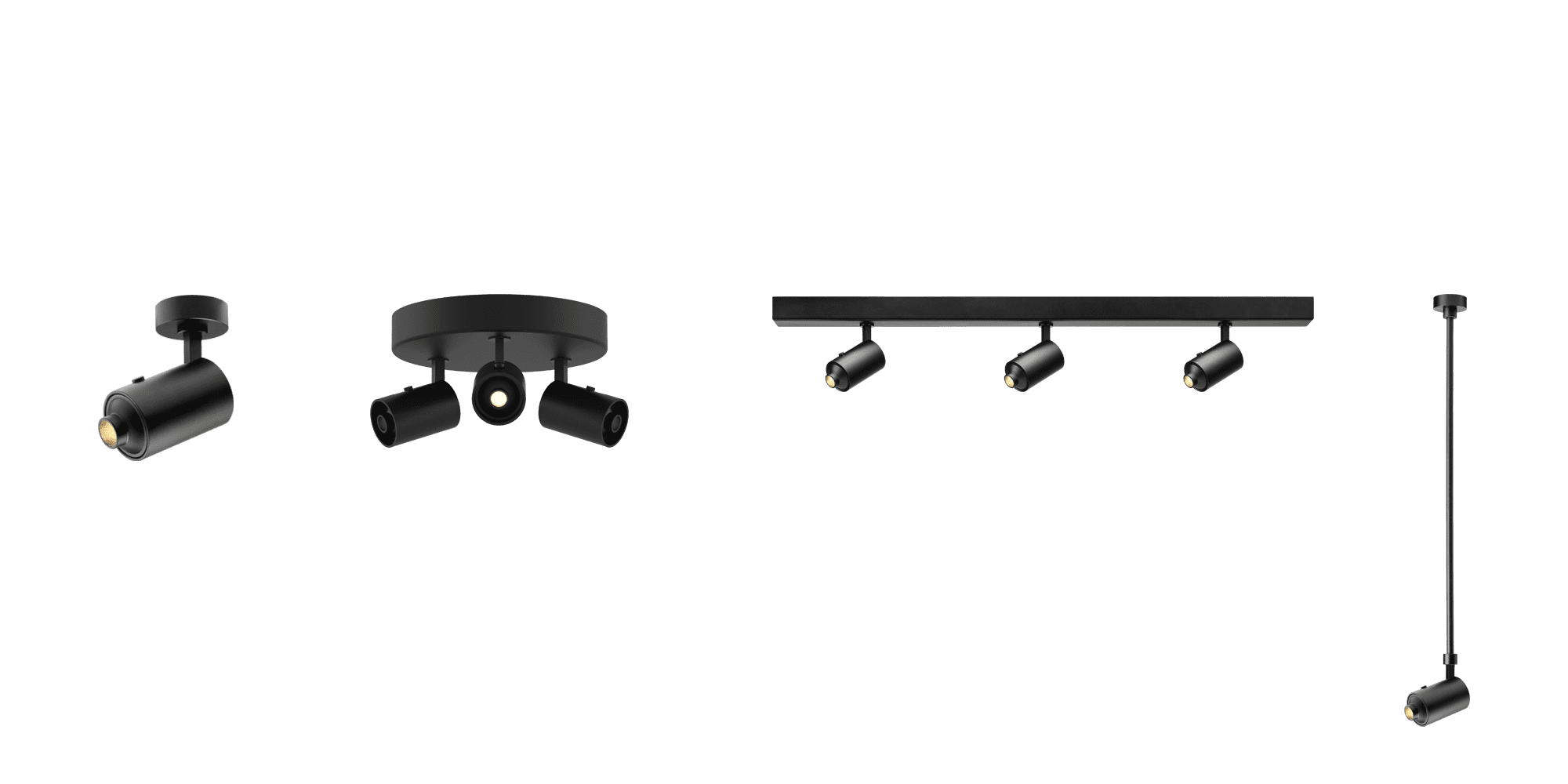

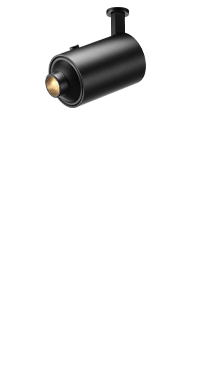

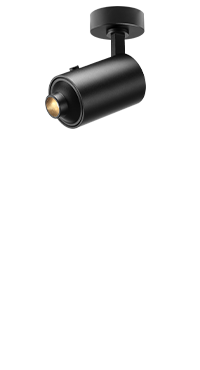

Ceiling

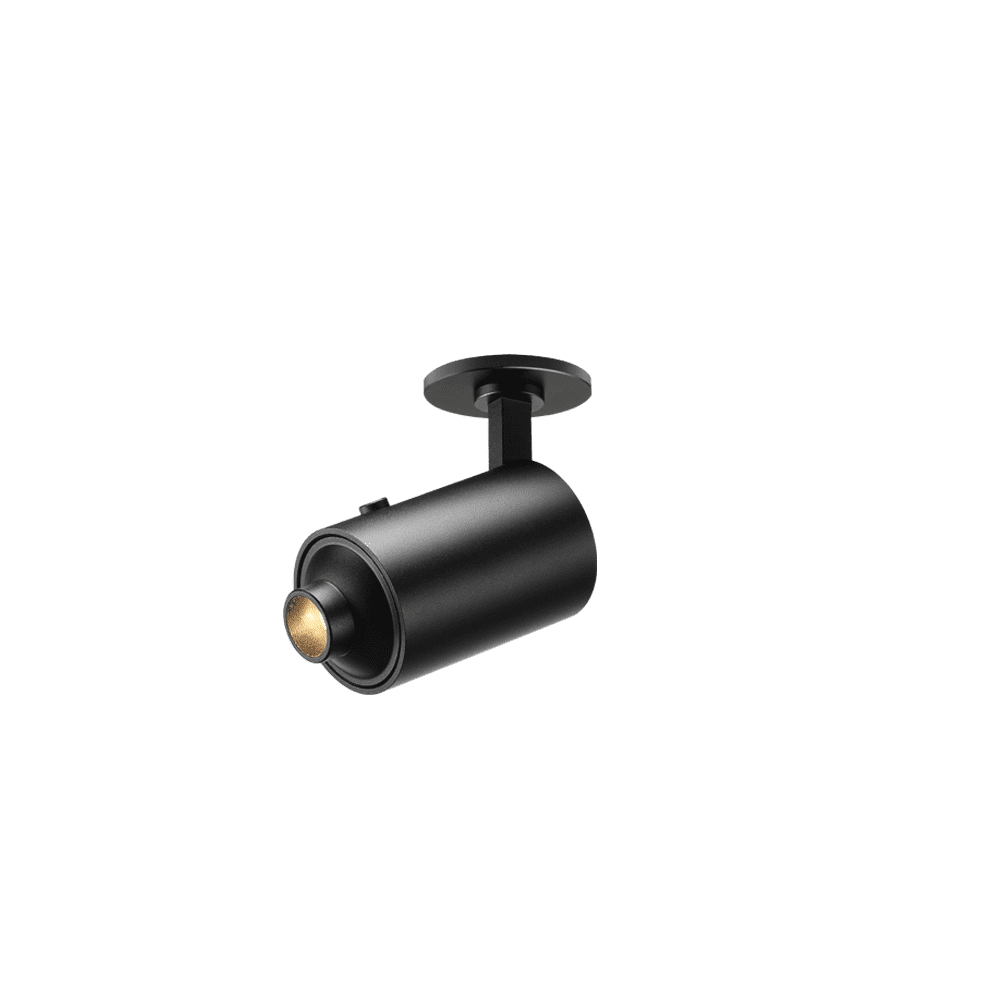

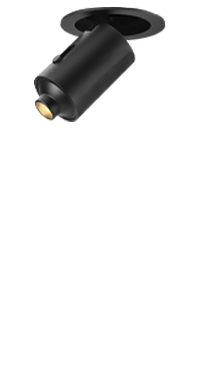

Embedded

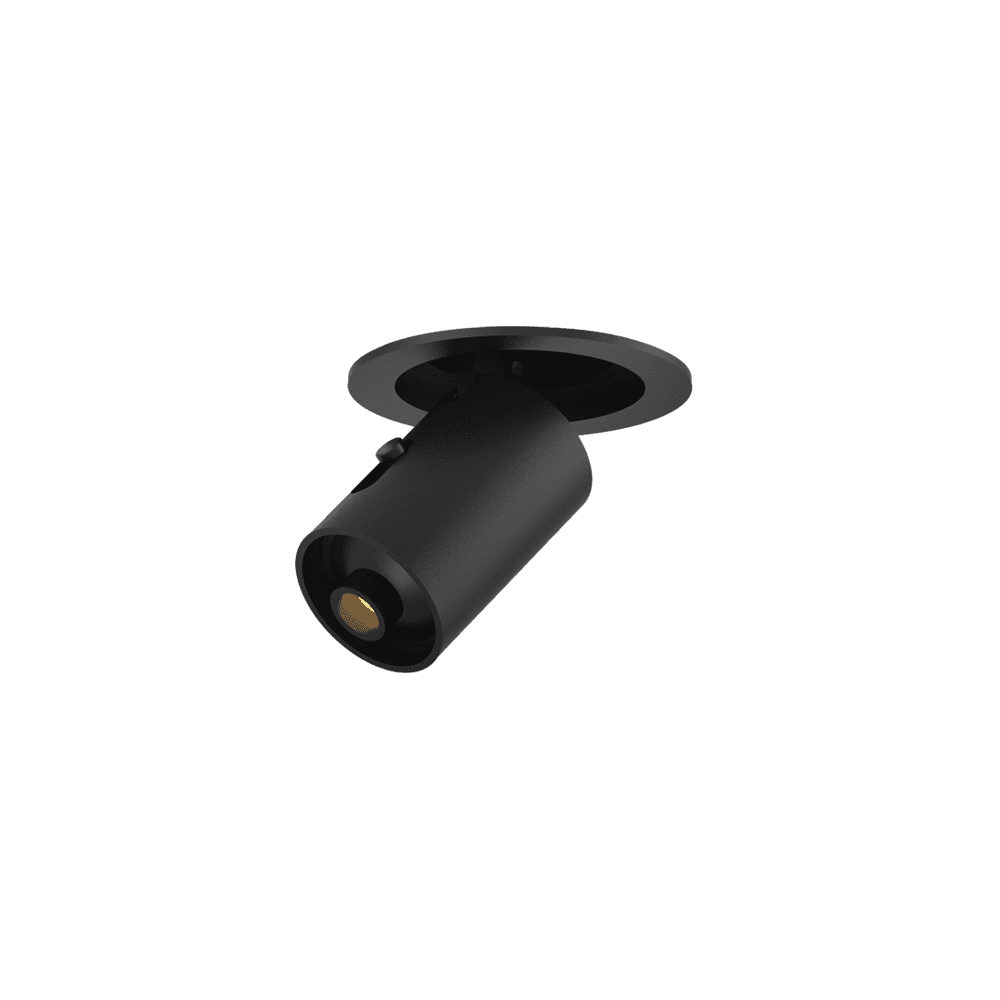

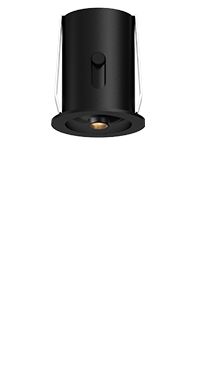

Recessed

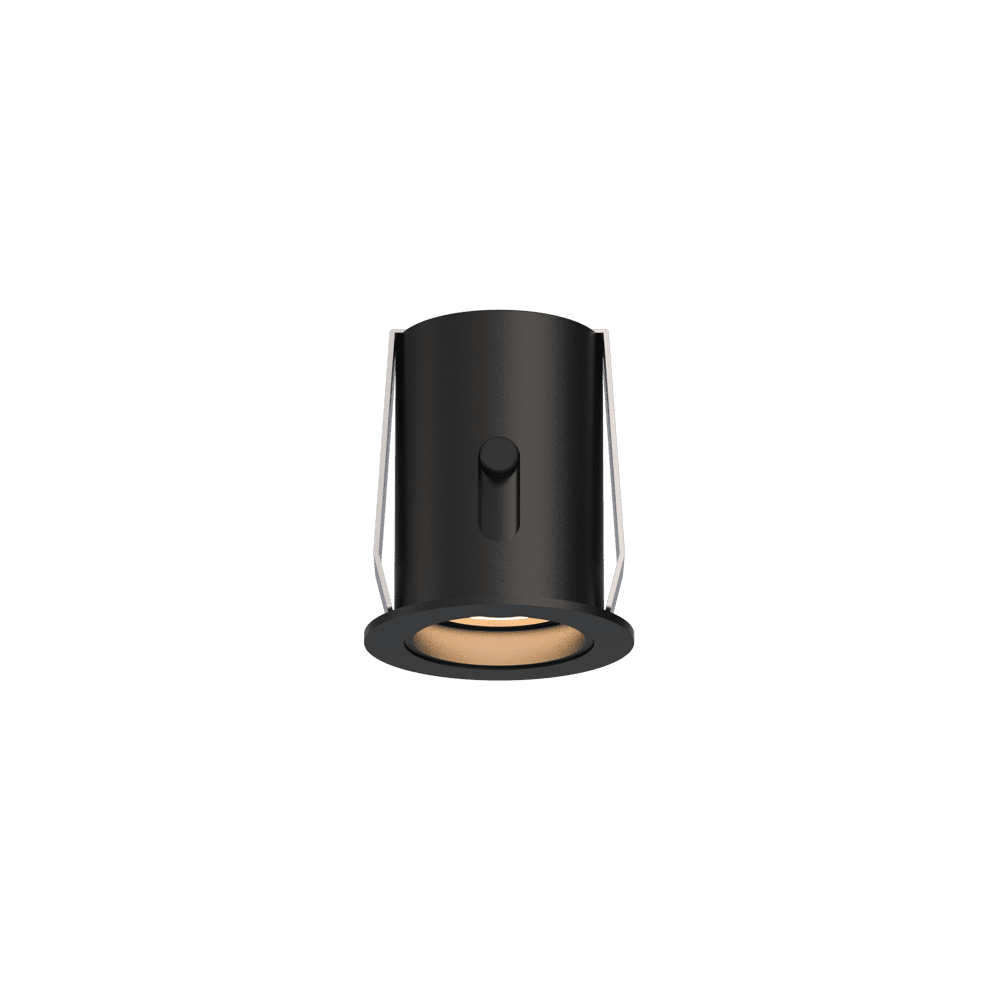

Downlight

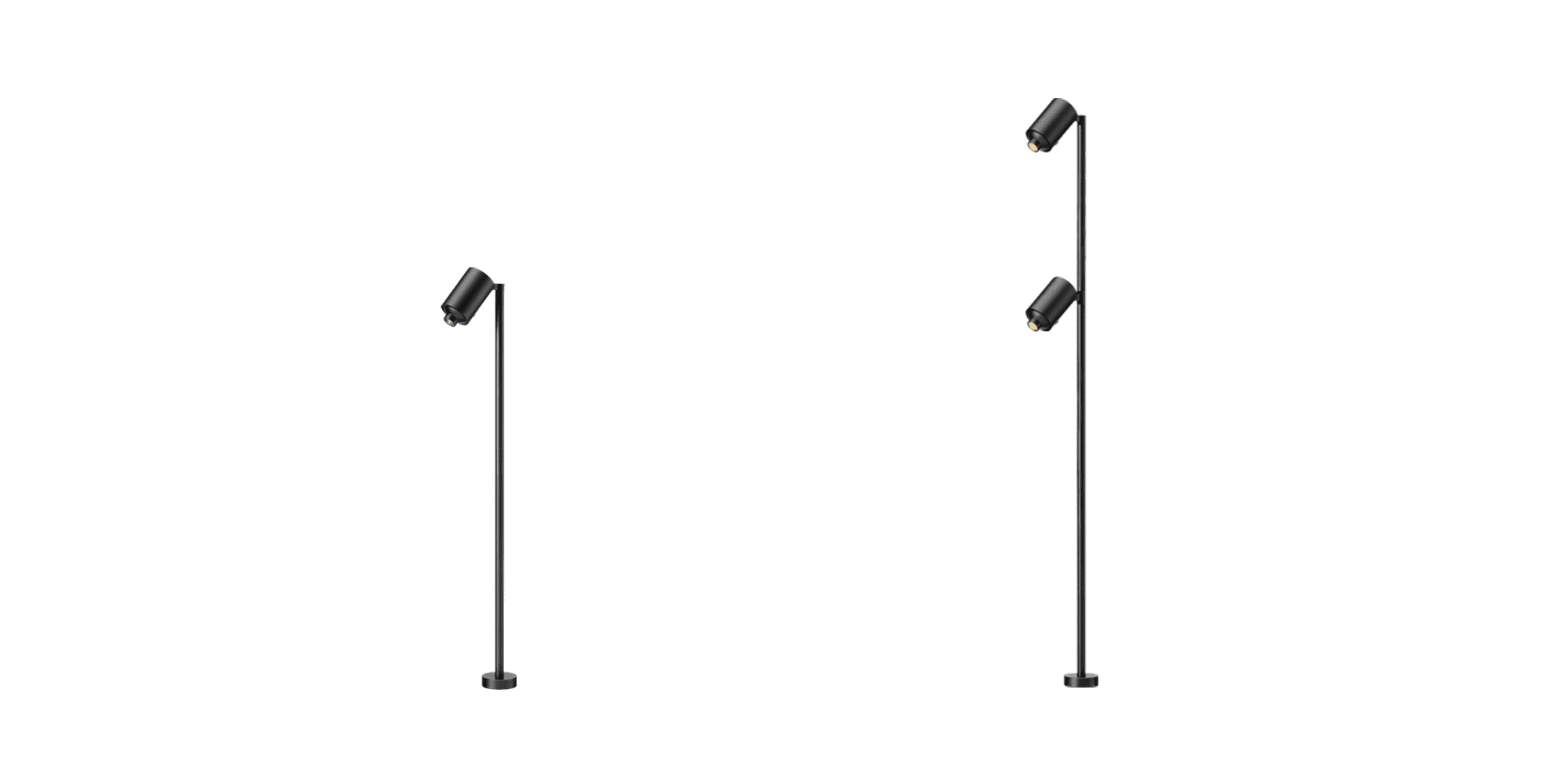

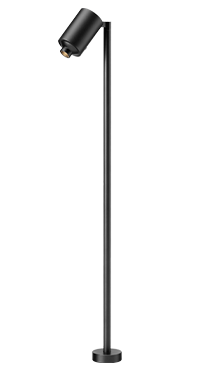

StandingPole

BEAM ANGLE

3~8o / 6~45o

Round

8o/12o/24o/36o

Round

SPECIFICATIONS

2700K CRI 95 1W Led Flux 100lm

3000K CRI 95 1W Led Flux 107lm

3500K CRI 95 1W Led Flux 110lm

4000K CRI 95 1W Led Flux 114lm

2700K CRI 95 2W Led Flux 130lm

3000K CRI 95 2W Led Flux 142lm

3500K CRI 95 2W Led Flux 148lm

4000K CRI 95 2W Led Flux 155lm

2700K CRI 95 3W Led Flux 200lm

3000K CRI 95 3W Led Flux 220lm

3500K CRI 95 3W Led Flux 225lm

4000K CRI 95 3W Led Flux 230lm

CONTROL

0/1 -10V dimmable

DALI dimmable

Phase dimmable (Triac)

Casambi dimmable

OPTIONAL ACCESSORIES

Color coated lens

Barn doors

Honeycomb louver

HOUSING COLOUR

Black

Silvery

Customized

System Electrical: 1x3W / DC3V 700mA(MAX)

3~8

6~45

8

12

24

36
